GENERAL PURPOSE TARP CURRENT POSITION : PRODUCTION INTRODUCTION > GENERAL PURPOSE TARP

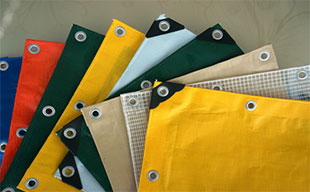

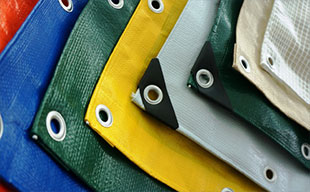

GENERAL PURPOSE TARPAULIN SHEET
(Used a general waterproof cover)
◆ Material : * LDPE Laminated both sides on woven HDPE yarn
(LDPE: Low Density Polyethylene, HDPE: High Density Polyethylene)
◆ Color : Any color available upon request
General Converting
Tarpaulin size is made by heat-welding on PE tarpaulin roll fabrics (LDPE Laminated both sides on woven HDPE yarn)
◆ SIZE RANGE
Width Length
Min. ~ Max. Min.~ Max.
FEET 6fts ~ 60fts 6fts ~162fts
YARD 2yards ~ 20yards 2yards ~ 54yards
METER 1.83meters ~ 18.2meters 1.83meters ~ 50meters
- Heavy weight material’s max. width will be 32ft(10.6yards, 10meters)
- The sizes could be limited by the weight of PE tarpaulin.

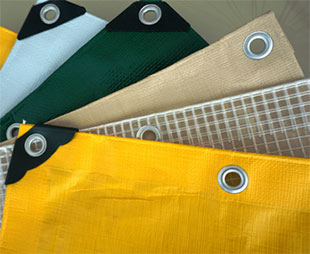

ㆍ Ropes reinforced hems on Four sides and Eyelets(grommets) are installed on Four sides as well
- Eyelets(grommets) will be various material and their interval will be decided as the customers’ demand; generally 3ft(1meter) interval
◆ Polyethylene Eyelet(grommet)
Hiscom strive to develop Eyelets(grommets) on tarpaulin 100% recycle without take them out of Tarpaulin.
Typical Aluminum and Polycarbonate eyelets(grommets) have to be detached from the PE tarpaulin fabric because of the hardness difference and different material.
However, new HISCOM’s Polyethylene Eyelets(Grommets) allow PE tarpaulin fabric recycled without detaching them.
With developed technology we are going to provide these products not only recyclable but also competitive price and high physical performance.
This development is final stage and testing.

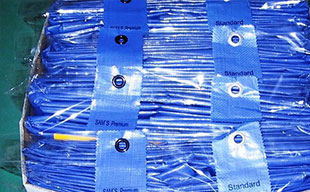

Individual package by poly bag(clear bag) with color label and relevant quantity of covers can be packed in bale or carton box.
◆ Leading Time(by On board)
Within 45days: PE tarpaulin rolls made in Korea and Tarpaulin Sheets(covers) are converted in China and Vietnam factory
(For Heavy duty and long time use purpose Tarpaulin sheet)
Within 40days: PE tarpaulin rolls made in Korea and Tarpaulin Sheets(covers) are converted in Korea factory.
◆ PE TARP MATERIAL RANGE
GENERAL LIGHT WEIGHT PE TARPAULIN FABRIC
(LDPE Laminated both sides on woven HDPE yarn)
WEIGHT(GSM) WEAVE/SQ.ICH DENIER
65-70GSM 7X6 700-750
80GSM 8X7 700-750
100GSM 10X8,10X10 750-800
110-140GSM 10X10,12X12 800-850
140-150GSM 12X12 900-950
HEAVY WEIGHT(DUTY) PE TARPAULIN FABRIC
(LDPE Laminated both sides on woven HDPE yarn)
WEIGHT(GSM) WEAVE/SQ.ICH DENIER
175GSM 8X8 High Denier
210GSM 12x12 or 10x10 High Denier
215GSM 9x8 High Denier
230GSM 9x9 High Denier
265GSM 11x9 High Denier
325GSM 8X8 High Denier
* The weight is up to 740GSM (mutiple layers)
