| RESIN DETAILS for Hiscom Corporation’s Tarpaulin (Made In Korea) |
|
|
| Hiscom Corp. has been using 100% Virgin resin(raw material;High and Low Density polyethylene for weave and coating to have the PE tarp and roll achieve higher UV and physical properties. |
|
|
|
|
HANWHA CHEMICAL (http://hcc.hanwha.co.kr)
- High Density Polyethylene 3392
- Coating Resin 9730
LOTTE CHEMICAL (http://www.lottechem.com)
- High Density Polyethylene 5000S
- High Density Polyethylene 5000ST
- Linear Low Density Polyethylene U8835
SAMSUNG TOTAL PETROCHEMICALS https://(www.samsungtotal.com)
- High Density Polyethylene Y910A
DAELIMPOLY (https://www.daelimchem.co.kr)
- High Density Polyethylene TR147
LG CHEM (http://www.lgchem.com)
- Metallocene High Density Polyethylene SP380 |
| EXTRUDING (High Density Polyethylene yarns) |
|
|
Using 100% virgin raw materials to extrude HDPE plastic yarns, wound onto spindles.
For high UV performance the yarns(tapes) can be in Black Color and UV stablizer added.
Air Cooing Extruded yars would obtain more flexiblity and Water Cooling Extruded yarns would get higher physical properites.
|
|
|
|
|
| WEAVING |
|
|
Fast and well-maintained water jet weaving machines weave High density polyethylene yarns to strong and straight fabric before coating.
It will determine for straight and flat PE fabric.
|
|
|
|
|
|
- Black Yarn Weave
|
|
- Various Color Stripe Weave
|
|
|
|
|
|
| COATING |
|
|
| Low Density Polyethylene coated(Laminated) both sides (or multi layers) on woven High Density Polyethylene fabric. The UV stablizer and other chemical agent can be added for special purposes. |
|
|
|
- Coating Machine
|
|

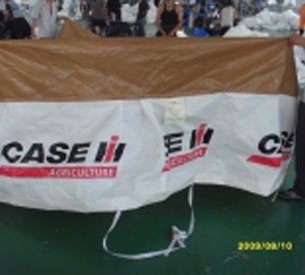

| PRINTING ON ROLL |
|
|
We have been producing various Design printed rolls for small rolls and converted covers(tarps) and make the design of logos as customer's request and use lubber plate for printing, which allows us to make various printing in efficient cost.
The followings are the some of examples that have been done by Hiscom Corporation.
|
|
|
|
|
|
- Small Size printing machine
|
|
|
|
|
|
|
|
- Rubber Plate
|
|
|
|
|
|
|
|
|
| Small Rolls and Jumbo Roll packing and Loading into a container |
|
|
The Coated PE fabric can be wound in small rolls and Jumbo rolls, which would be from 50meters to 2,000meters.
The common Core for roll is paper in various size and the steel cap can be put both end to prevent the crush.
Sometimes, the steel core can be used.
|
|
|
|
|
|
|
|
|
| - 3inch Paper core with Steel Cap for Jumbo roll |
 |
|
|
| - 36mm Paper core for small rolls |
 |
|
|
|
|
